SAK-TC212L-8F133N AC
Summary of Features:
The TC22x / TC21x product family has the following features: • High Performance Microcontroller with one CPU core • Power Efficient scalar TriCore CPU (TC1.6E), having the following features: – Binary code compatibility with TC1.6P – 133 MHz operation at full temperature range – 88 Kbyte Data Scratch-Pad RAM (DSPR) – 8 Kbyte Instruction Scratch-Pad RAM (PSPR) – 8 Kbyte Instruction Cache (ICACHE) – 4 line read buffer (DRB) • Lockstepped shadow core for TC1.6E • Multiple on-chip memories – All embedded NVM and SRAM are ECC protected – 1 Mbyte Program Flash Memory (PFLASH) – 96 Kbyte Data Flash Memory (DFLASH) usable for EEPROM emulation – BootROM (BROM) • 16-Channel DMA Controller with safe data transfer • Sophisticated interrupt system (ECC protected) • High performance on-chip bus structure – 64-bit Cross Bar Interconnect (SRI) giving fast parallel access between bus masters, CPUs and memories – 32-bit System Peripheral Bus (SPB) for on-chip peripheral and functional units – One bus bridge (SFI Bridge) • Safety Management Unit (SMU) handling safety monitor alarms • Memory Test Unit with ECC, Memory Initialization and MBIST functions (MTU) • Hardware I/O Monitor (IOM) for checking of digital I/O • Versatile On-chip Peripheral Units – Two Asynchronous/Synchronous Serial Channels (ASCLIN) with hardware LIN support (V1.3, V2.0, V2.1 and J2602) up to 50 MBaud – Four Queued SPI Interface Channels (QSPI) with master and slave capability up to 50 Mbit/s – One MultiCAN+ Module with 3 CAN nodes each and 128 free assignable message objects for high efficiency data handling via FIFO buffering and gateway data transfer – 4 Single Edge Nibble Transmission (SENT) channels for connection to sensors – One Generic Timer Module (GTM) providing a powerful set of digital signal filtering and timer functionality to realize autonomous and complex Input/Output management – One Capture / Compare 6 module (Two kernels CCU60 and CCU61) – One General Purpose 12 Timer Unit (GPT120) • Versatile Successive Approximation ADC (VADC) – Cluster of 2 independent ADC kernels – Input voltage range from 0 V to 5.5V (ADC supply) • Digital programmable I/O ports • On-chip debug support for OCDS Level 1 (CPUs, DMA, On Chip Buses) • Four/five wire JTAG (IEEE 1149.1) or DAP (Device Access Port) interfac
Product attributes:
| category | Integrated Circuit (IC) |
| Program storage capacity | 512KB(512K x 8) |
| Voltage Supply (Vcc/Vdd) | 3.3V |
| operation temperature | -40°C ~ 125°C(TA) |
| Supplier Device Packaging | PG-TQFP-80-7 |
| Connectivity | CANbus,LINbus,QSPI |
Customer Service:
1. Do you support BOM lists?
Of course, we have a professional team to provide BOM.
2. Shown below. Behind MOQ?
Our MOQ is flexible and can be provided according to your needs, with a minimum of 10 pieces.
3. What about lead time?
After receiving the deposit, we will arrange to pack the goods and contact logistics for delivery. The duration is 3-7 days.
4. Our advantage?
1. Stable and sufficient supply
2. Competitive pricing
3. Rich BOM experience
4. Perfect after-sales service
5. Professional test certificate
5. Our service?
Payment methods :T/T, L/C, D/P, D/A, MoneyGram, Credit Card, paypal, Western Union, Cash, Escrow, Alipay...
6. Transportation:
DHL, TNT, FedEx, EMS, DEPX, Air, Sea Shipping
Product image:
|
|

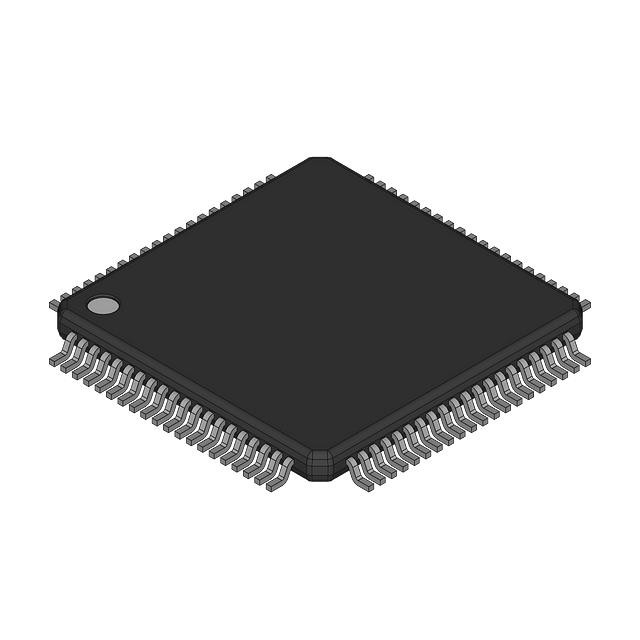

SAK-TC212L-8F133N AC Images
|
